Up to 10 times better wear resistance. 50% lower total costs.
Peirox™ wear plate has been developed specifically for the mining industry as a wear-resistant and cost-effective solution.
More wear resistant than steel
The Peirox™ wear plate is designed to last. Thanks to its unique design and material choices, it lasts up to 10 times longer than hardened steel. Its longer service life translates directly into lower overall costs with fewer replacements, less downtime and lower maintenance costs.
This is how much you save by choosing Peirox
Steel wear plate | PEIROX 4x | |
Size | 490*490*40 | 490*490*40 |
Amount | 70 pieces | 70 pieces |
Price | 340€ | 620€ |
Service life | 5 weeks | 15 weeks |
Replacements per year | 12 | 4 |
Replacement costs* | 180 k€ | 60 k€ |
Total costs | 204 k€ | 103 k€ |
Savings per year | 100 k€ (approx. -50%) |
*Including costs due to interruption of production
”Valkoisten valurautojen rakenteessa karbidit saavat aikaan hyvinkin korkeat mikro- ja makrokovuudet (500 – 1500 HV). Tämän takia kulumiskestävyys hankaavan kuorman tilanteissa on monilla tavoin erinomainen.”
”Kulumiskestävät valuraudat tarjoavat erinomaisen vaihtoehdon hankaavan kuormituksen alaisiin komponentteihin.”
Kalle Jalava
apulaisprofessori, Tampereen Yliopisto.
Materia-lehti 3/2025
Most popular uses

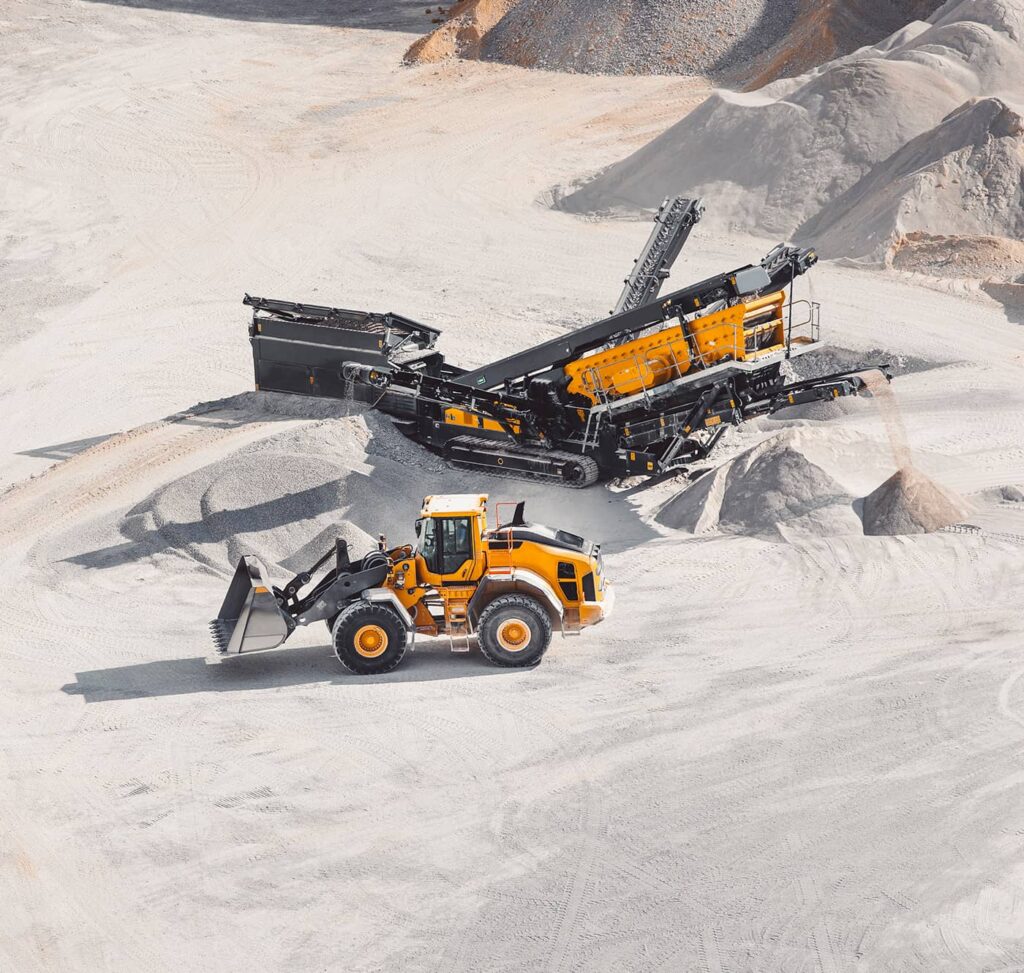

The Peirox™ wear plate is designed for demanding, abrasive conditions where material flow rapidly wears down surfaces. It is particularly suitable for applications where rock, ore or other abrasive materials come in contact with the plate. It is particularly useful in mining environments, but its performance capabilities also bring benefits in many other industrial processes.
Our wear plates have proven their reliability for decades, for example in mines in Northern Sweden.
Typical applications:
- Feed hoppers of crushers and conveyors
- Feed troughs and chutes
- Lifting buckets
- Other wear plates in abrasive processes
- Material handling systems of mining and enrichment plants
Peirox™ wear plate product information
General properties
- Designed and manufactured in Finland
- All plates contain fixing holes
Special properties

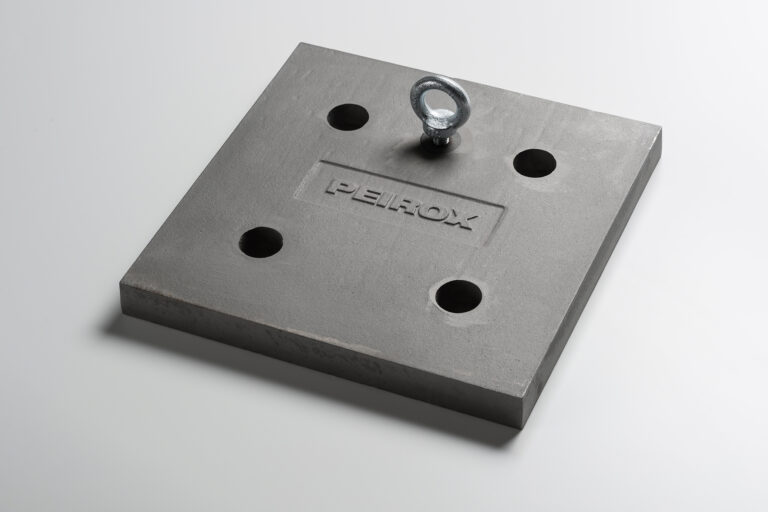

- The plates are equipped with a lifting insert for smoother handling, if required

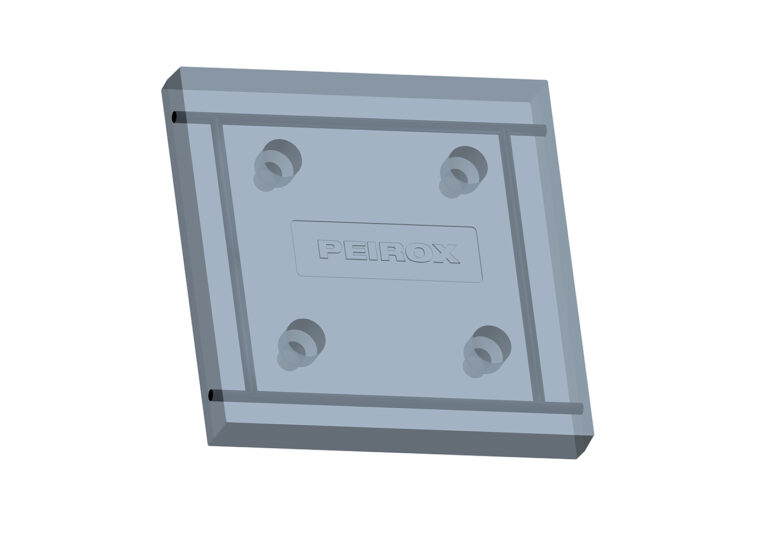

- The plates are reinforced, preventing possible plate cracks from spreading to the process

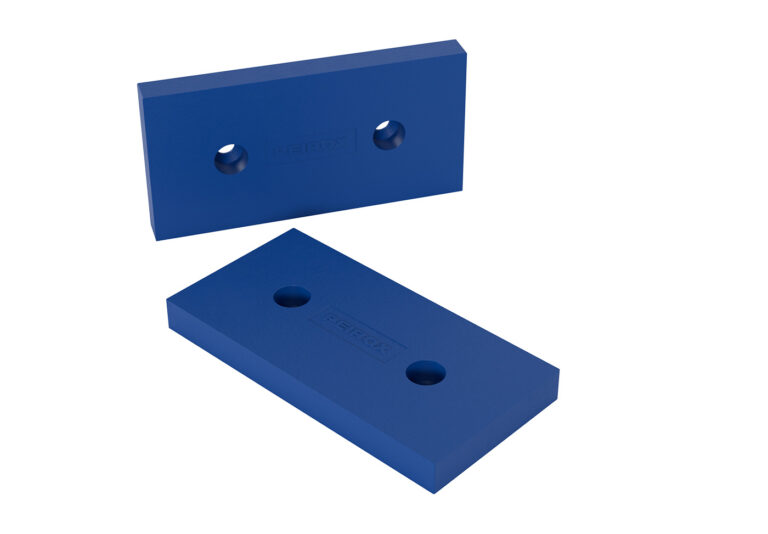

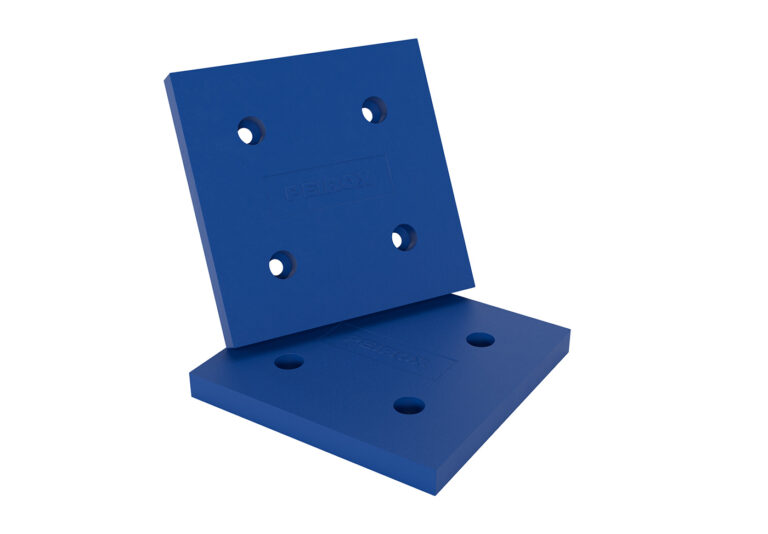

Dimensions and sizes
The plates can be manufactured with the dimensions required by the customer, taking into account the minimum and maximum limits.
Standard sizes | 200×400 mm, 400×400 mm, 240×490 mm, 490×490 mm, |
Standard thicknesses | 30, 40, 50, 60, 80, 100, 120 mm |
Minimum size | 200×200 mm (approx. 10 kg) |
Maximum size | 700×1000 mm (approx. 300 kg) |

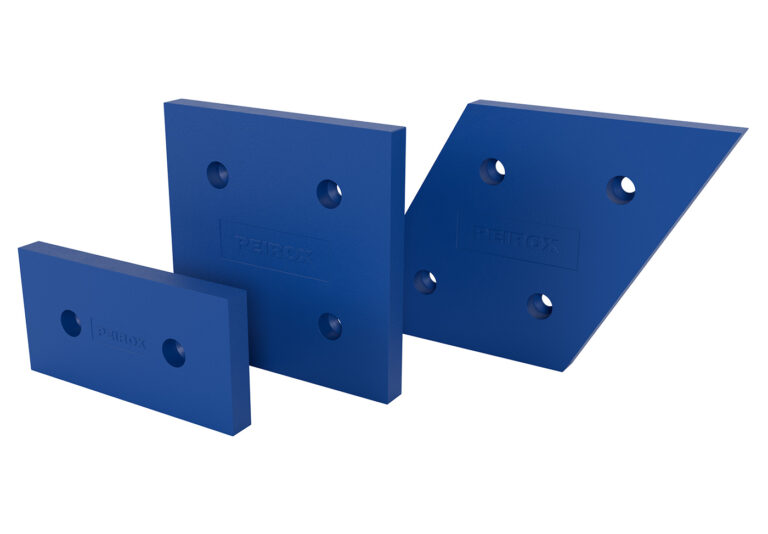

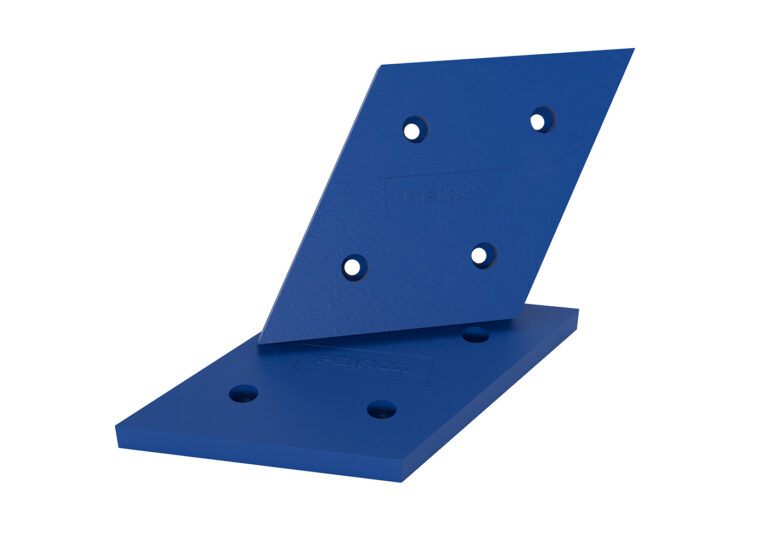

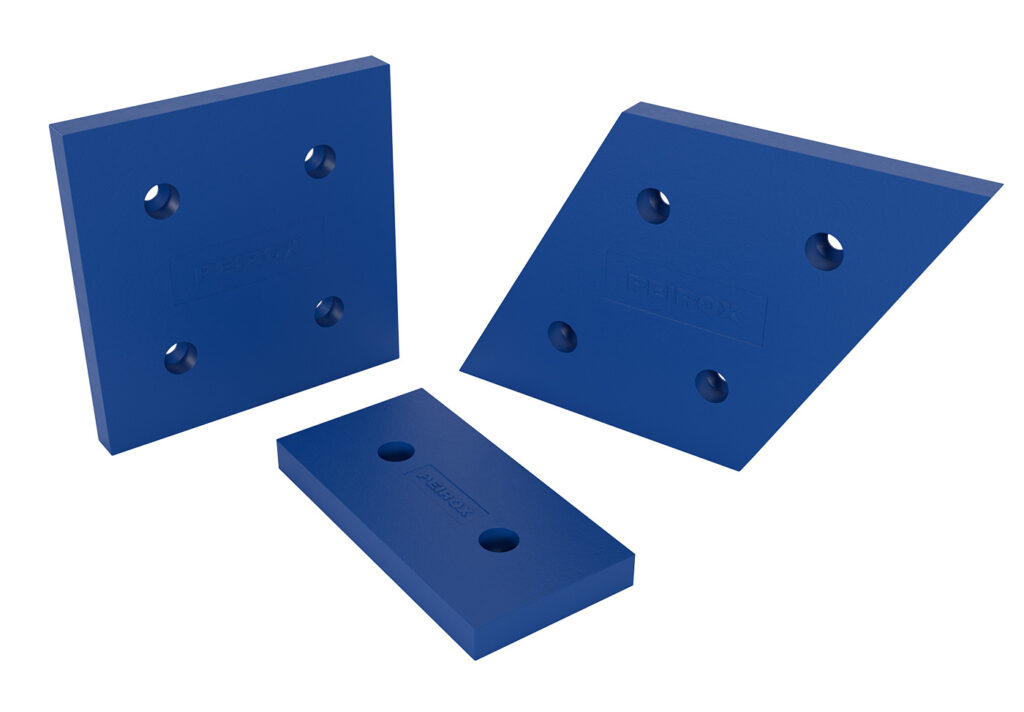

| Shape | Freely configurable within the dimensional limits: square, rectangle, parallelogram, triangle or combinations of these. |
Materials
–
PEIROX Material | Wear-resistant similar to AR400 steel plate*
| Material standard EN
|
PEIROX 4x | 4x longer | 5.5604 (Ni-Hard 1) |
PEIROX 5x | 5x longer | 5.5605 (Ni-Hard 4) |
PEIROX 8x | 8x longer | 5.5608 (Cr14) |
PEIROX 9x | 9x longer | 5.5609 (Cr18) |
PEIROX 10x | 10x longer | 5.5610 (Cr23) |
*Abrasion resistance in a rubber wheel abrasion test at 130 N
*In suitable conditions, also similar to AR450 steel
Prices
The Peirox™ wear plate is a long-lasting and cost-effective choice. Below, you can find example prices for the most common standard sizes. Tailor-made sizes and shapes are made to your needs—request a quote!
As Peirox lasts up to 10 times longer than steel wear plates, the savings are particularly noticeable in overall costs.
Plate size (mm) | Thickness (mm) | Material | Price (VAT 0%) |
| 200×400 | 40 | PEIROX 4x | 344 € |
| 400×400 | 40 | PEIROX 4x | 482 € |
| 240×490 | 40 | PEIROX 4x | 409 € |
| 490×490 | 40 | PEIROX 4x | 620 € |
The prices are examples of standard sizes – contact us for a quote on a solution that meets your needs!
“Abrasion resistance tests shows that the best properties among investigated samples has chromium cast iron plate. Abrasion wear resistance of this plate is two times higher than wear resistance of layer made by welding technologies and nine times higher than typical Hardox 400 steel plate.”
Adamiak et al., Journal of Achievements in Materials and Manufacturing Engineering (2009)
Ask more or request a quote
Do you need more information, a quote or are you wondering if Peirox is the right solution for your needs? Leave a message, our experts will be happy to help. We respond to all contacts no later than the next business day.
If you wish, you can also include measurements, quantities or other preliminary information concerning your wear plate needs.
